maniera

Filomuro

Company
Bertolotto
Category
Glass
Finishes
18 finishes
Profiles
2 profiles
Enquire about this door
Bertolotto Filomuro - interior view, photograph 1

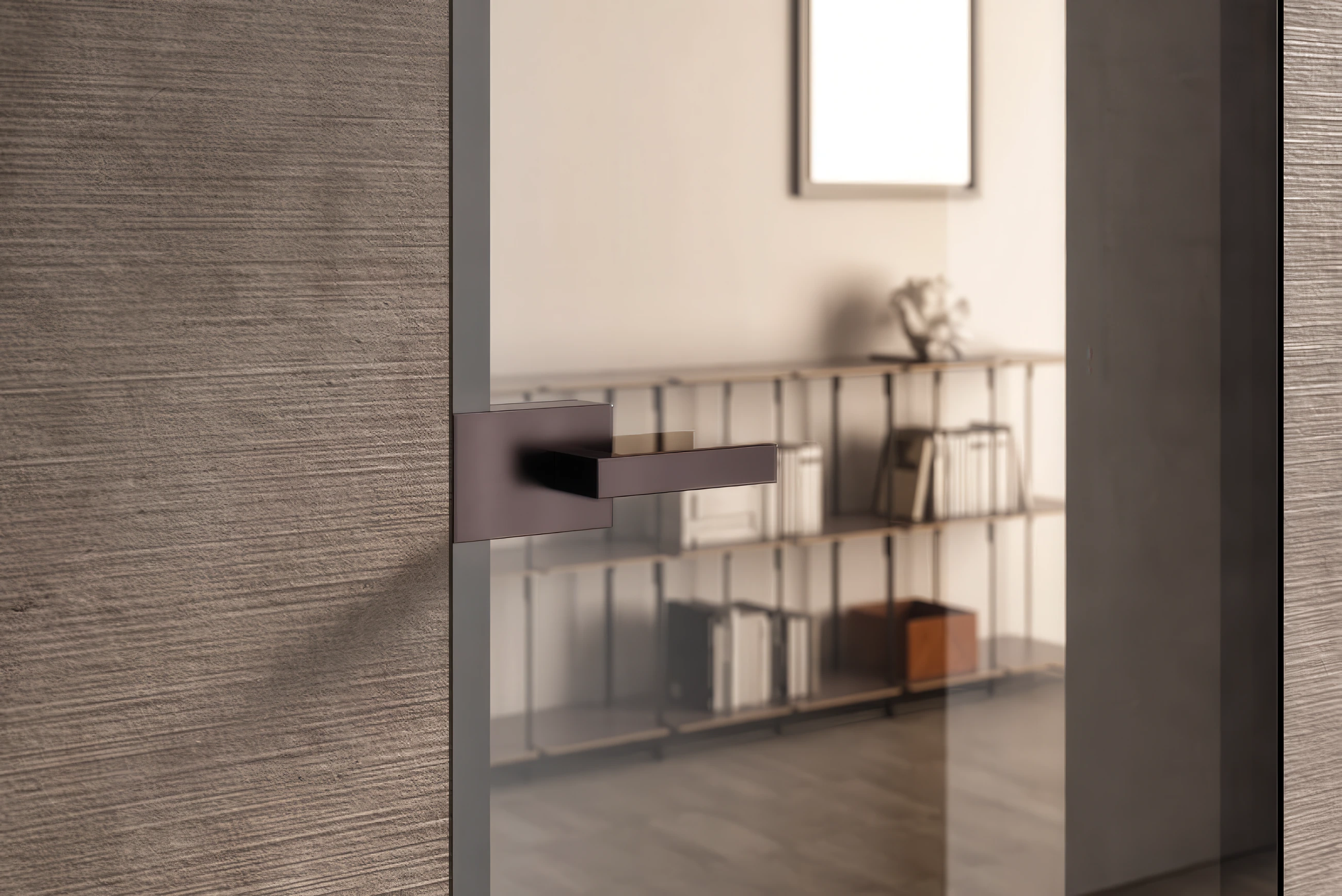

Bertolotto Filomuro - interior view, photograph 2
Bertolotto Filomuro - door detail, photograph 3

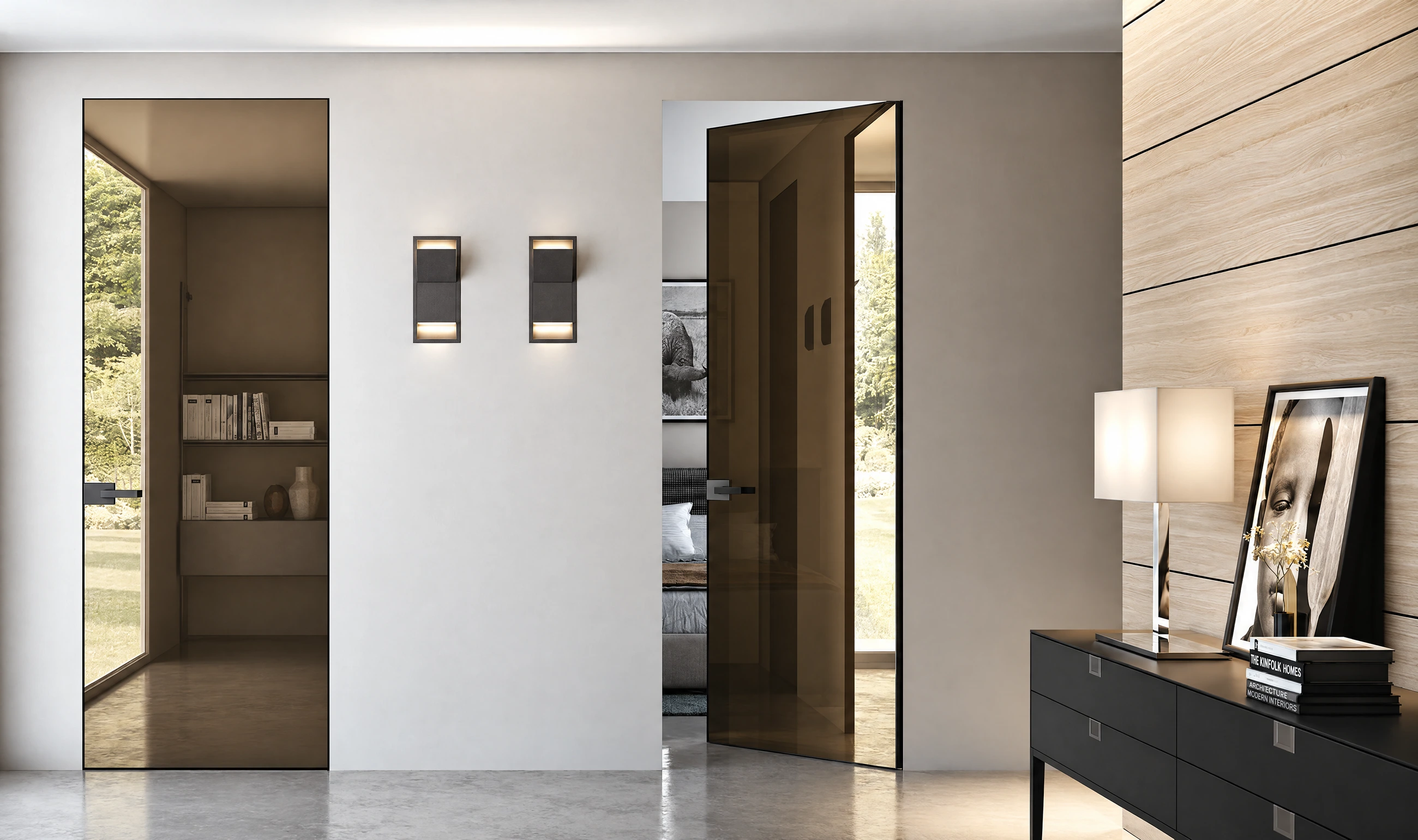

Bertolotto Filomuro - interior view, photograph 4

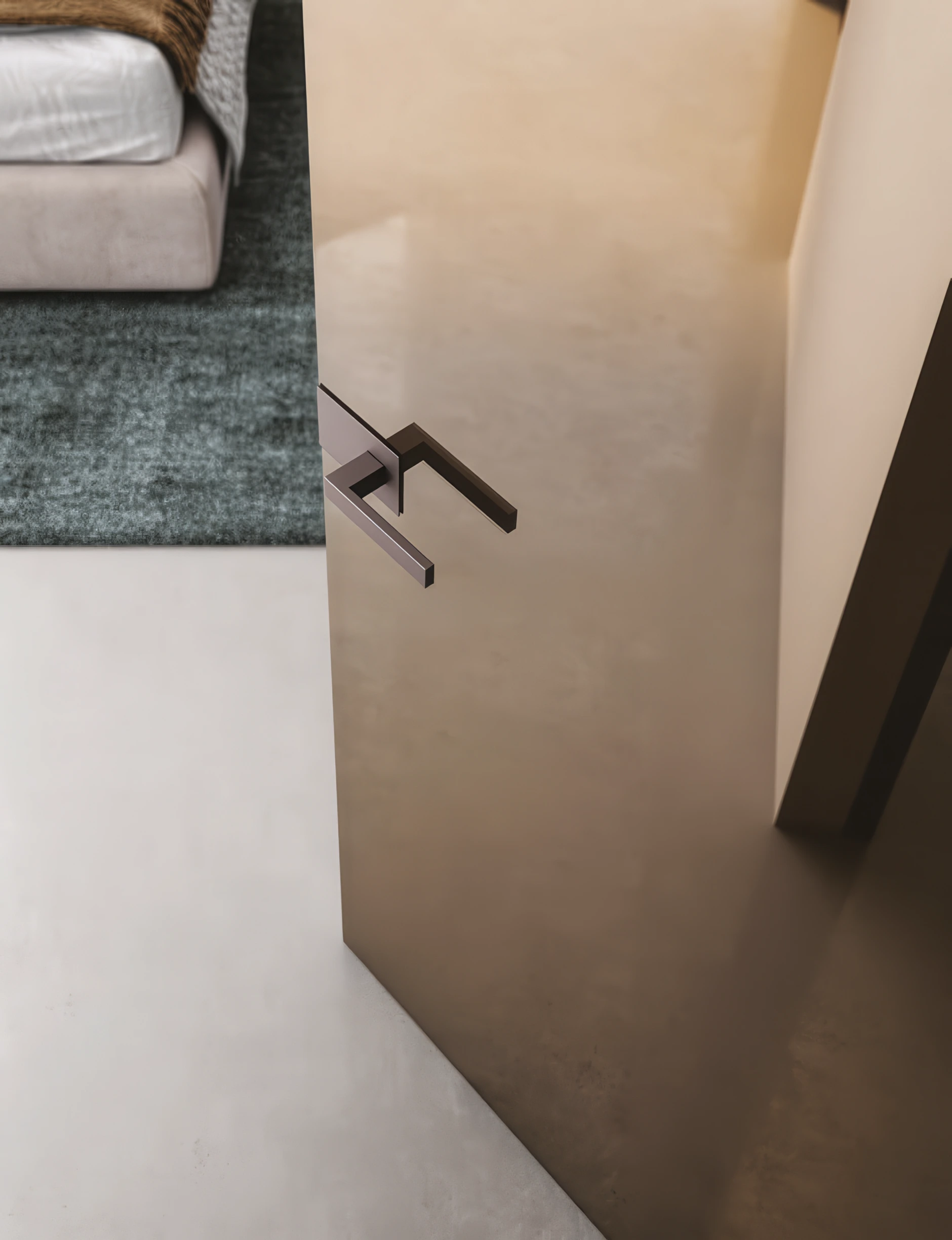

Bertolotto Filomuro - door detail, photograph 5

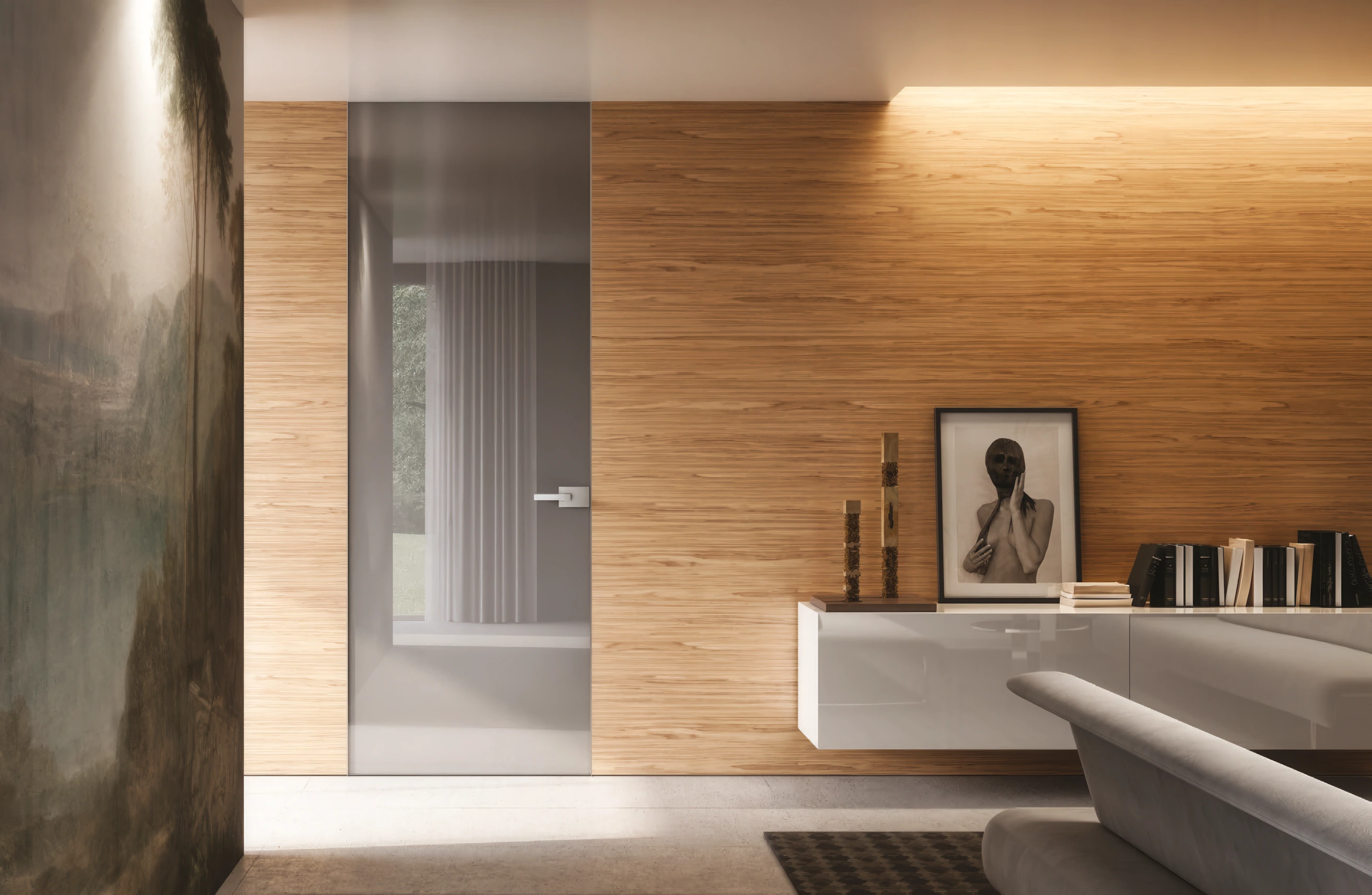

Bertolotto Filomuro - interior view, photograph 6

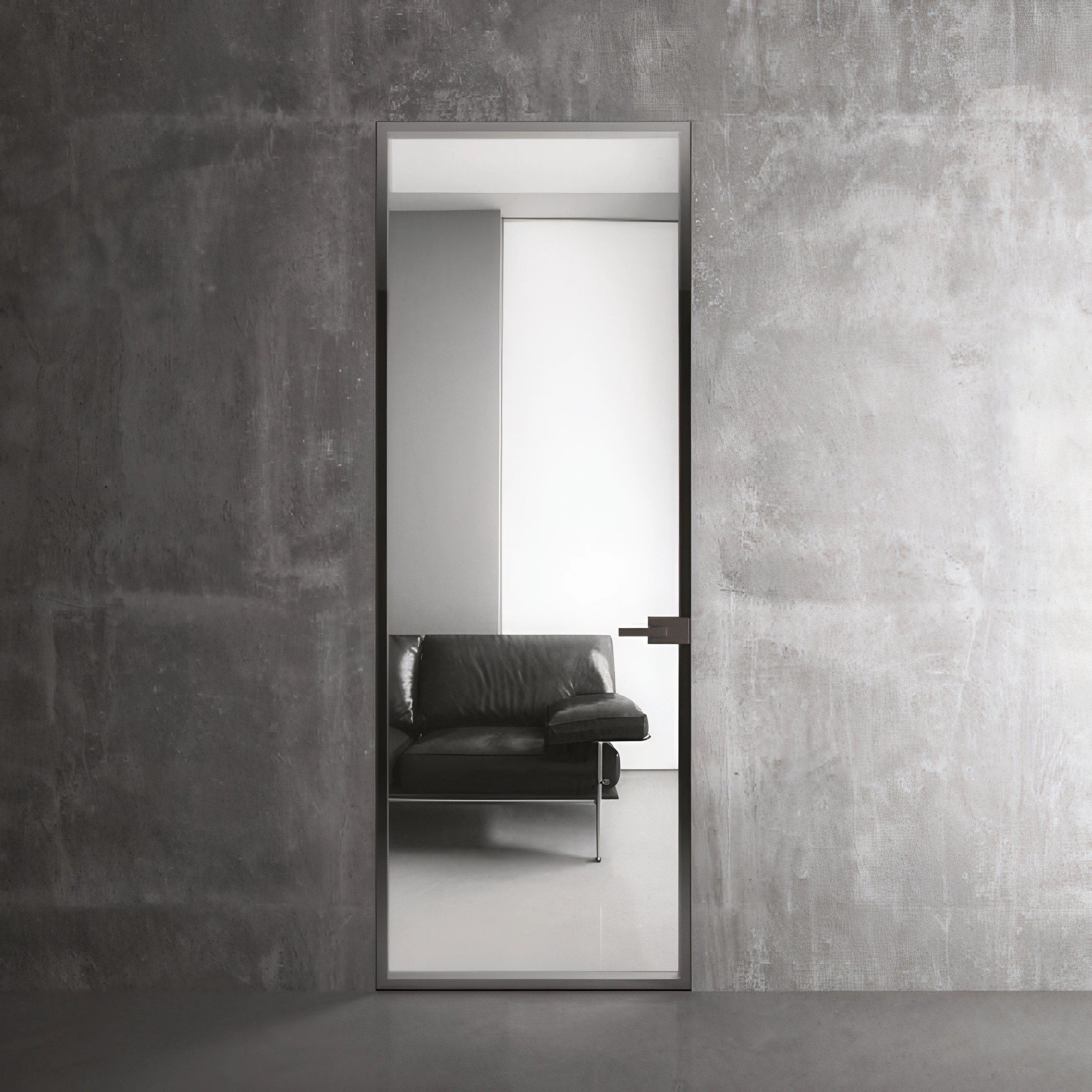

Bertolotto Filomuro - door detail, photograph 7

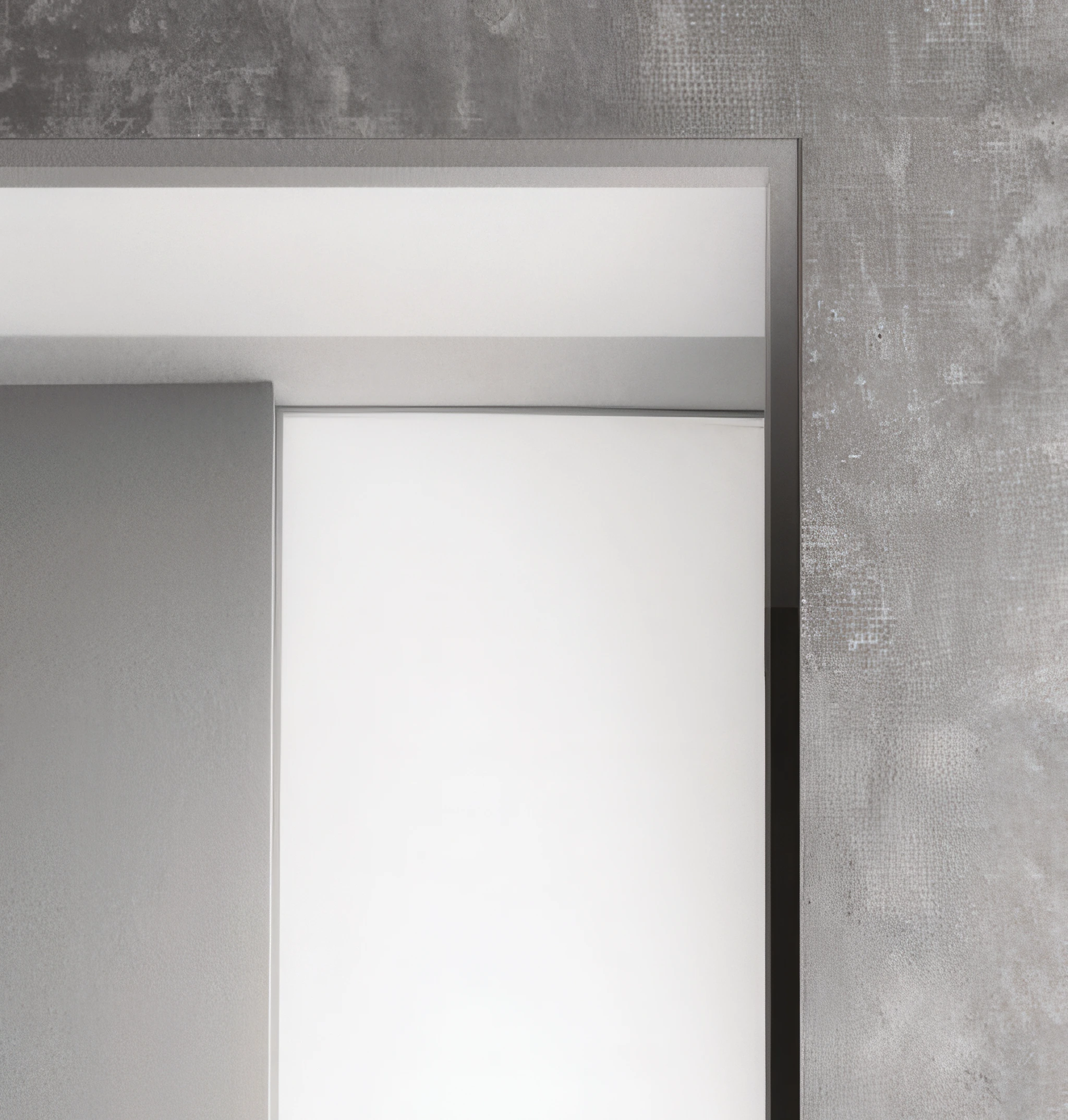

Bertolotto Filomuro - door detail, photograph 8

Filomuro brings a hinged glass door flush with the wall. Its frame is concealed within the wall, leaving the glass and its aluminium edge visible around the opening. When closed, the door sits level with the surrounding surface, without a projecting surround. Full-height arrangements carry the glass up to the ceiling.

Construction

The door combines an aluminium structure with 5 mm toughened glass or 3+3 mm laminated glass, depending on the glass selected. Its concealed aluminium frame fits within masonry or plasterboard walls.

The toughened glass is heated to 650°C and cooled under controlled conditions, giving it five times the mechanical strength of ordinary glass. Laminated glass consists of two 3 mm sheets bonded around a transparent PVB film, which holds the fragments together if the glass breaks. In double-sided lacquered glass, the colour sits between the sheets, protected from scratches, dust and moisture.

Available as single and double doors.

Bertolotto specifies toughened glass to UNI EN 12150 and UNI EN 12600, and laminated glass to UNI EN 12600.

Decorative options

Sandblasted patterns are available to add a drawing to the glass surface.

Hinges and locks

Concealed hinges. Magnetic locks are available, including Yale cylinder options.

In India

Bertolotto doors supplied in India come with PVD (Physical Vapour Deposition) treated handles as standard, providing greater resistance to scratches and corrosion. The handles carry a 30-year warranty, while the doors carry a five-year manufacturer’s warranty.

Profiles

  • Filomuro | Crystal BI
    Crystal BIGlass on both sides of the profile.
  • Filomuro | Crystal
    CrystalGlass on one side of the profile.

Glass finishes

  • Extra-clear transparent glass
  • Smoked transparent glass
  • Bronze transparent glass
  • White frosted glass
  • Extra-clear white frosted glass
  • Grey frosted glass
  • Bronze frosted glass
  • Clear Stop-Sol glass
  • Smoked Stop-Sol glass
  • Bronze reflective glass
  • Smoked frosted Reflex glass
  • Bronze frosted Reflex glass
  • Mirror
  • Smoked mirror
  • Bronze mirror
  • Multiline
  • Extra-clear frosted Millerighe glass
  • Bronze frosted Millerighe glass

Lacquered glass

  • White lacquered glass
  • Hemp lacquered glass
  • Graphite lacquered glass
  • Black lacquered glass
  • Earth lacquered glass
  • Dove grey lacquered glass
  • Brown lacquered glass
  • Perlage lacquered glass

Aluminium finishes

  • Bianco
  • Brown
  • Antracite
  • Nero
  • Perlage
  • Ossidato Bronzo
Enquire about this door

Made by
Bertolotto Porte, Italy

Bertolotto is an Italian door maker with an obsession for getting things right. Since 1987, the company has brought together people who care deeply about how a door is designed, made and finished. All materials and components are sourced in Italy. In the factory, precise machinery works alongside craftsmen who have spent decades perfecting their part of the process. They produce at scale, then refine the work by hand, with the same attention given to every door. That care goes into the design of each door, too. Working with artists and designers, Bertolotto explores new ideas for its shape, surface and place within a room, pushing beyond familiar expectations of what a door can be. This combination of imagination and care drew us to Bertolotto and led us to bring their doors to India.
